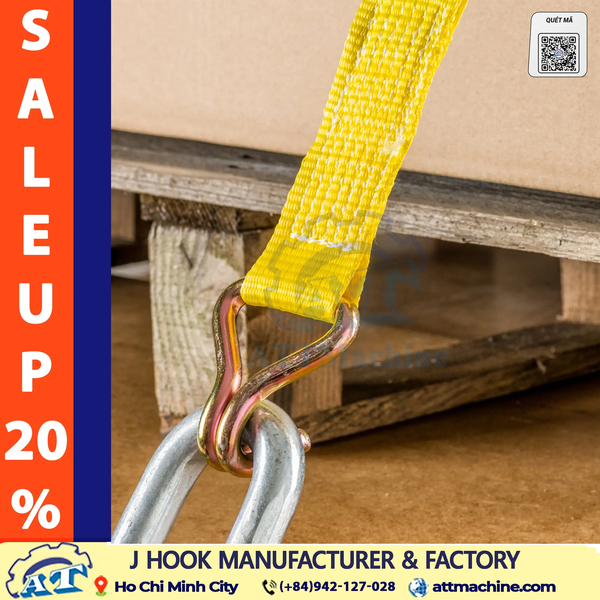

ATTMachine 2 Inch J Hook is a heavy-duty cargo tie-down hook designed for 2-inch / 50mm webbing, ratchet straps and cargo-securing systems. This model is specified with a 10,000 lbs breaking strength and 3,333 lbs working load limit (WLL) for applications including trailer tie-down, vehicle cargo securing, equipment transport and industrial load restraint.
ATTMachine supplies 2 Inch J Hooks for OEM production, wholesale and bulk orders, serving manufacturers and distributors of ratchet straps, tie-down straps and cargo-control hardware.

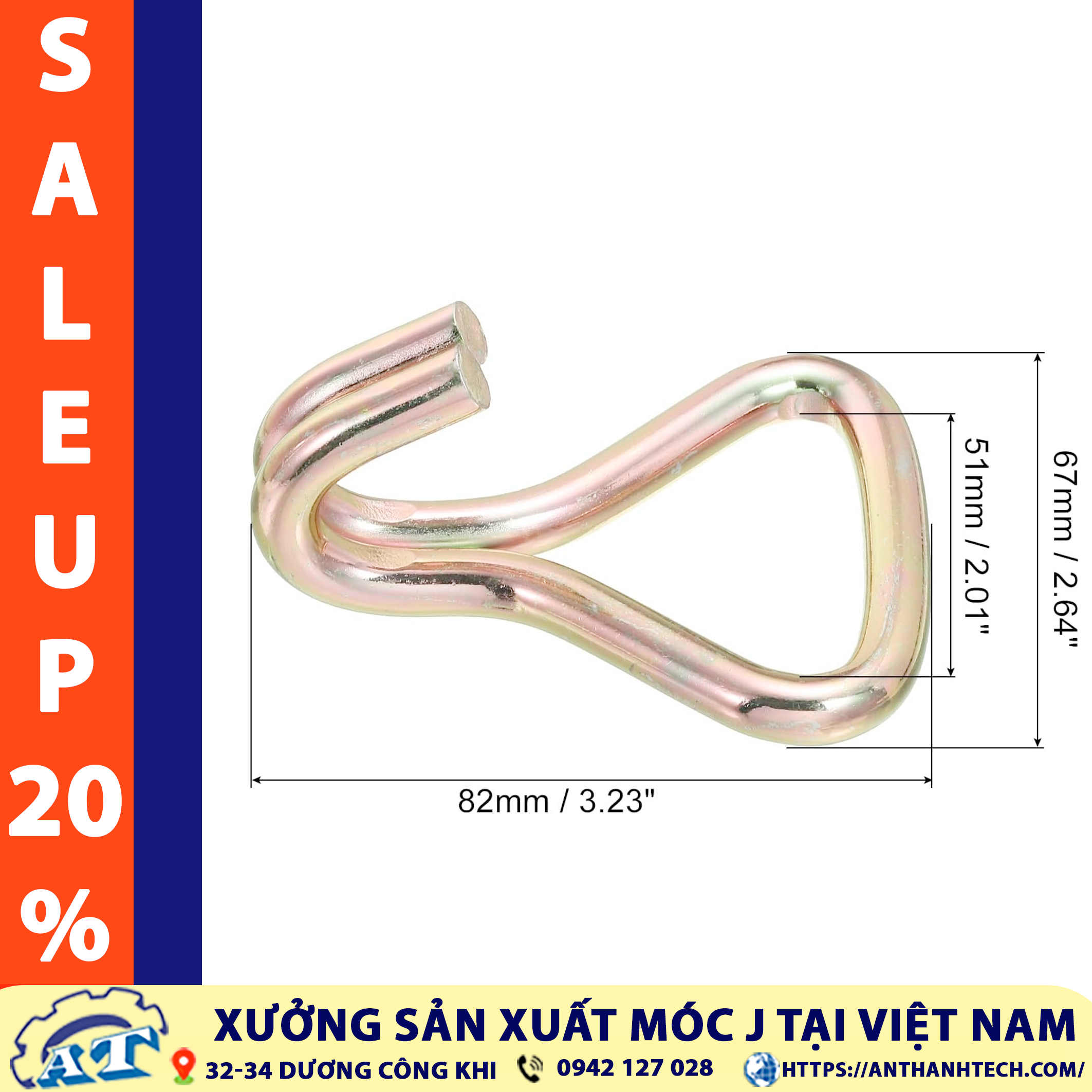

2 Inch J Hook Specifications
| Specification | Details |
|---|---|
| Product | 2 Inch J Hook |
| Size | 2 inch / 50mm |
| Compatible Webbing | 2 inch / 50mm webbing |
| Hook Type | J Hook |
| Breaking Strength | 10,000 lbs |
| Working Load Limit (WLL) | 3,333 lbs |
| Application | Cargo tie-down and load securing |
| Manufacturer | ATTMachine Mechanical Co., Ltd. |
| Supply | OEM, wholesale and bulk |
Note: Breaking strength and WLL refer to the hook/component rating. The allowable capacity of a complete tie-down assembly also depends on the webbing, stitching, ratchet, other hardware and anchor point used in the system.

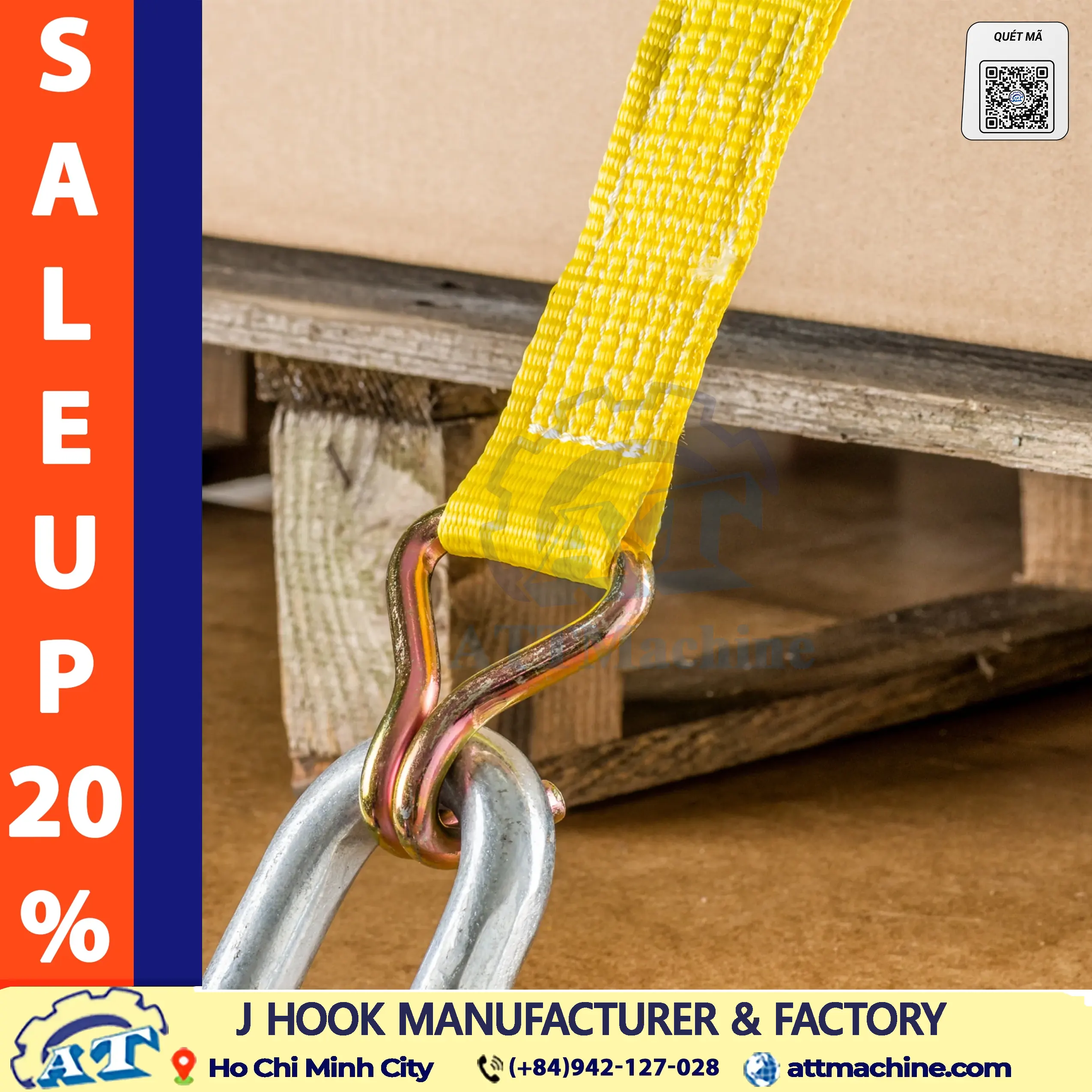

2 inch J hook manufacturer - ATTMachine wholesale
50mm J Hook for Ratchet & Tie-Down Straps
The 2 Inch J Hook is designed for 50mm / 2-inch webbing, the common width used in heavy-duty ratchet straps and cargo tie-down systems.
As a strap end fitting, the J Hook connects the webbing assembly to a compatible anchor point on a trailer, truck, vehicle or other load-securing structure.
Typical compatible systems include:
-
2-inch ratchet straps
-
50mm tie-down straps
-
Cargo lashing straps
-
Heavy-duty webbing assemblies
-
Vehicle tie-down systems
-
Trailer cargo-securing systems
The hook width should be matched with the webbing width and the complete assembly should be rated for the intended load.
10,000 lbs Breaking Strength & 3,333 lbs WLL
ATTMachine specifies this 2 Inch J Hook at:
- Breaking Strength: 10,000 lbs
- Working Load Limit: 3,333 lbs
Breaking strength is the load at which the component may fail under destructive testing. It should not be treated as the working capacity of a complete tie-down system.
The WLL is the working-load value specified for the hook. When the hook is assembled into a ratchet strap or cargo tie-down, the complete system must be used within the applicable rating of its limiting component.

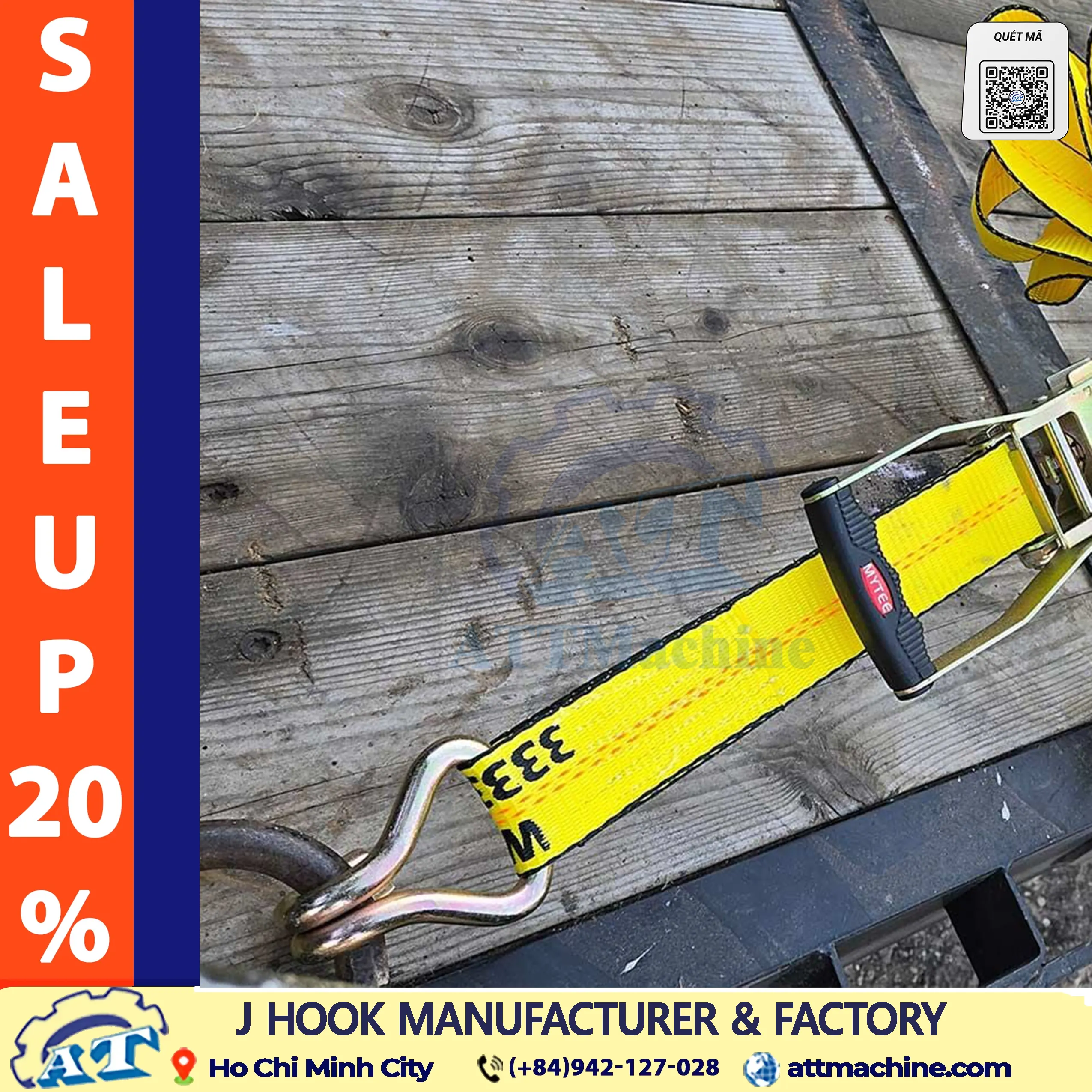

2 inch J hook for ratchet straps - ATTMachine
For example:
Using a 10,000-lb hook does not automatically make a complete strap assembly a 10,000-lb system. Webbing strength, stitching, ratchet hardware and anchor-point capacity must also be considered.
This distinction is particularly important for OEM and cargo-control manufacturers selecting individual end fittings.
Applications
The 2 Inch J Hook is suitable for cargo-control and load-securing applications such as:
Trailer & Flatbed Cargo
Used as an end fitting on compatible 50mm tie-down assemblies for securing cargo on trailers and flatbed vehicles.
Truck & Vehicle Tie-Down
Suitable for vehicle cargo-securing systems where the J Hook can properly engage a compatible anchor point.
Equipment Transportation
Can be incorporated into tie-down assemblies used to secure machinery, equipment and other transported loads.
Industrial Cargo Securing
Suitable for manufacturers and distributors supplying cargo-control hardware and heavy-duty tie-down systems.
Ratchet Strap Assemblies
Designed as a component for compatible 2-inch / 50mm ratchet strap systems.
The anchor point must always be compatible with the hook geometry and rated appropriately for the intended application.

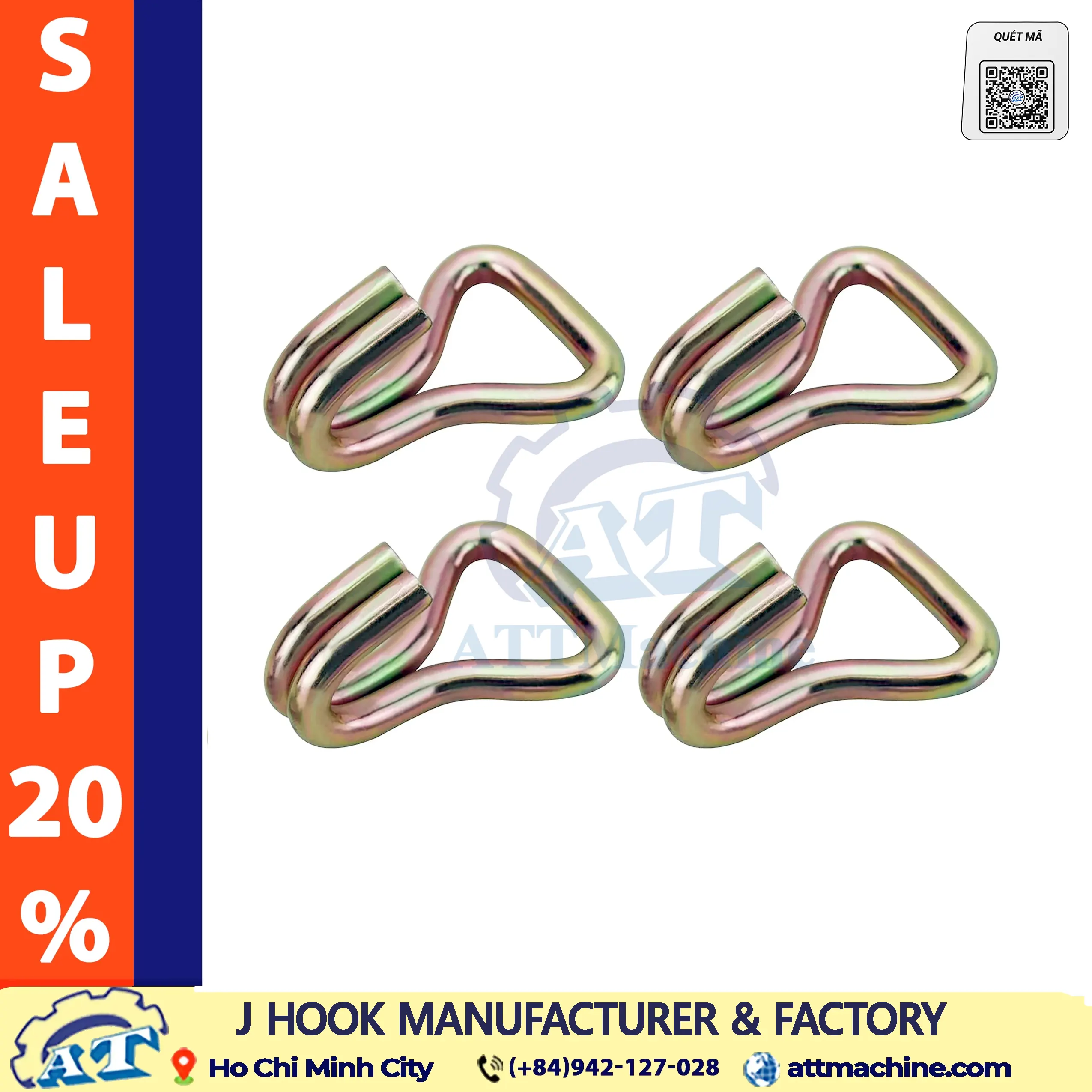

50mm J hook manufacturer for tie down straps - ATTMachine

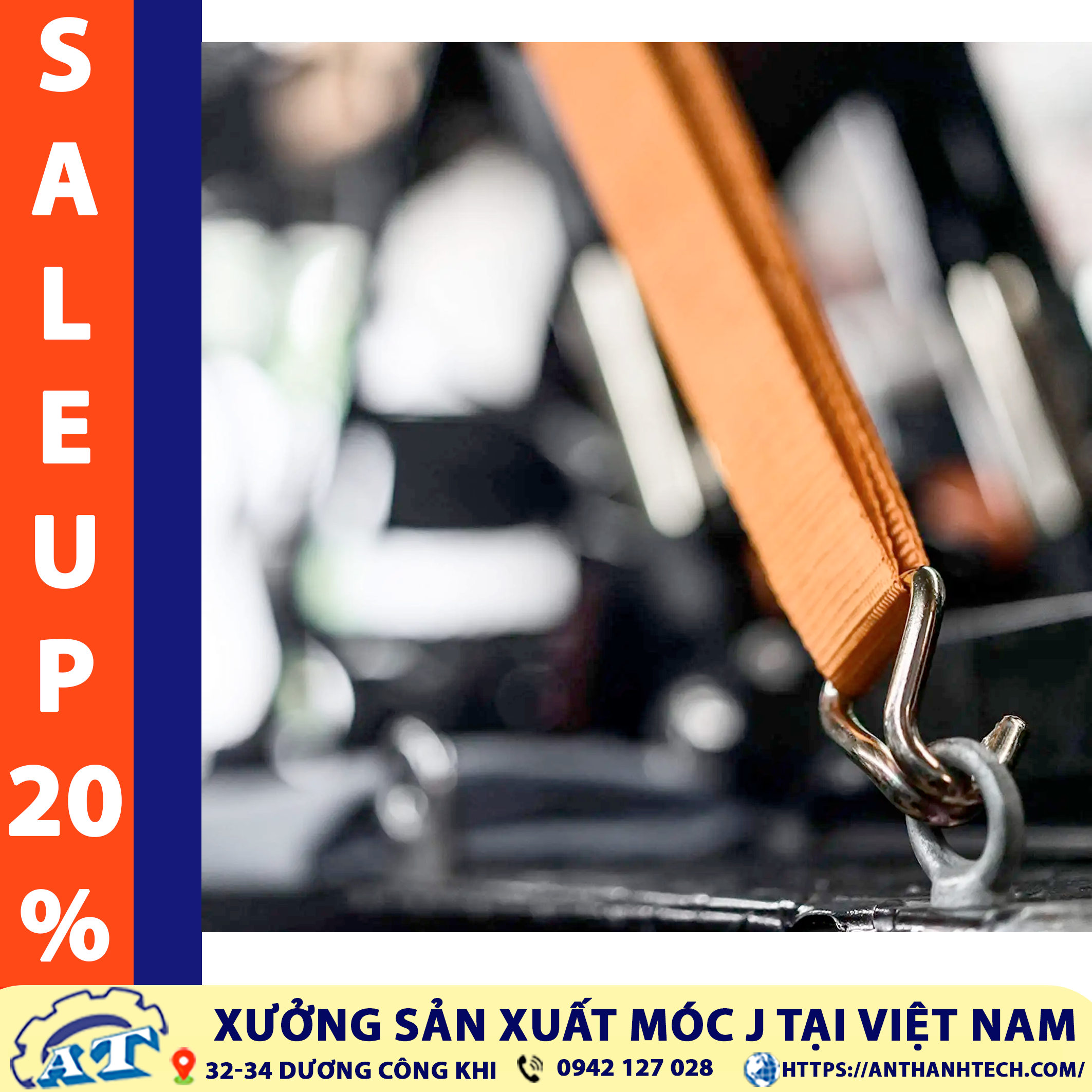

J Hook as a Cargo Tie-Down End Fitting
A J Hook is an end fitting attached to the webbing of a tie-down assembly. Its curved profile allows the hook to engage a compatible ring, frame or anchor point.
For cargo-control applications, the important selection criteria are not only the nominal 2-inch size but also:
-
Webbing width
-
Hook configuration
-
Breaking strength
-
Working load limit
-
Anchor-point compatibility
-
Material and finish
-
Assembly method
-
Application requirements
Different 2-inch J Hook configurations can have substantially different load ratings. Commercial products in the market include single J hooks, double J wire hooks, swivel J hooks and J hooks with keepers, so the exact model specification should always be verified rather than assuming that every 2-inch J Hook has the same capacity.
Why Choose ATTMachine 2 Inch J Hook?
ATTMachine Mechanical Co., Ltd. manufactures and supplies metal hardware for cargo tie-down, ratchet strap and load-securing applications.
For B2B buyers, the 2 Inch J Hook offers:
-
10,000 lbs specified breaking strength
-
3,333 lbs specified WLL
-
2-inch / 50mm webbing compatibility
-
Application in ratchet and tie-down strap assemblies
-
Manufacturer-direct supply
-
OEM and bulk-order support
-
Access to related cargo-control hardware

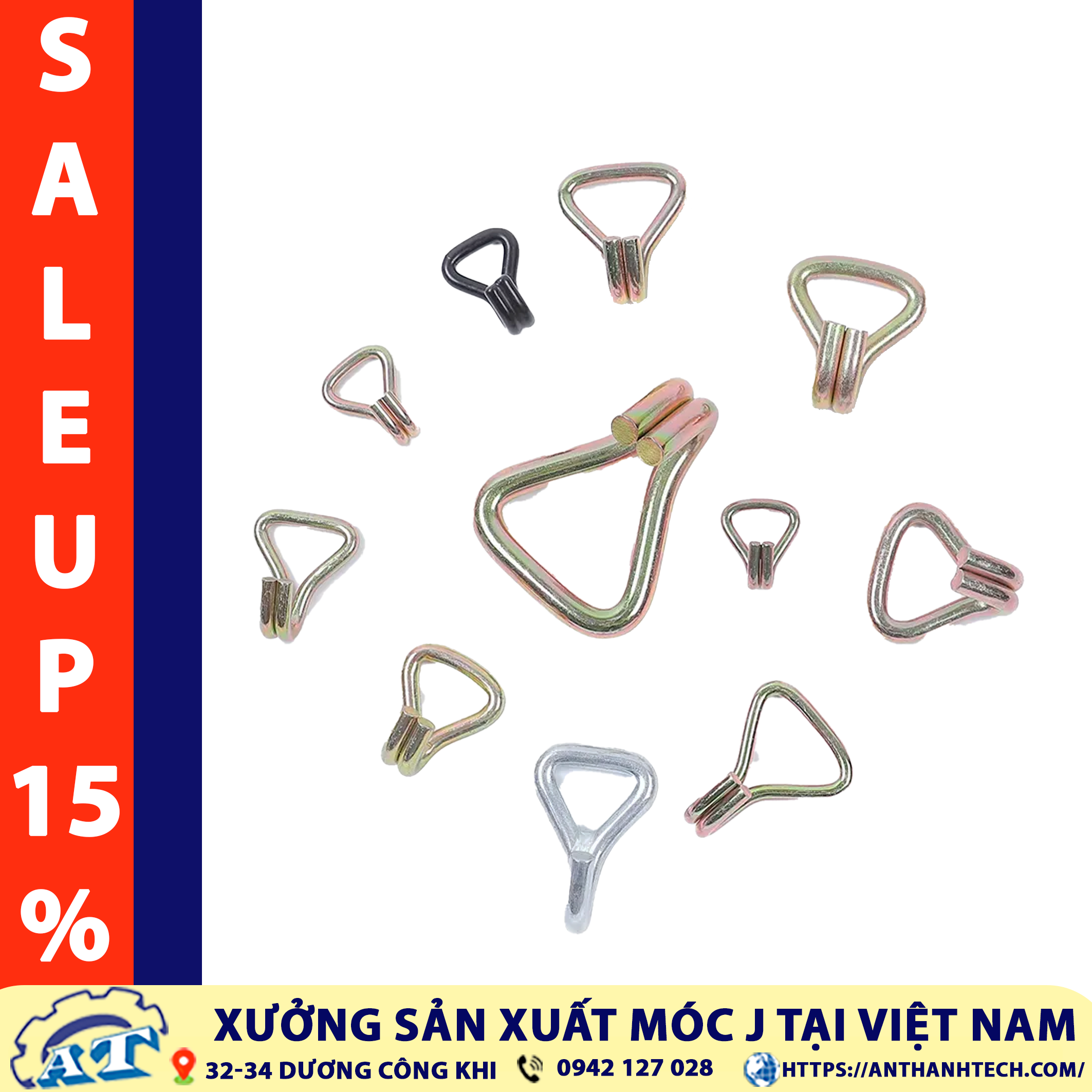

ATTMachine's hook range includes J Hooks and other tie-down hardware in different sizes and configurations, allowing buyers to source components for complete cargo-control product lines.
OEM & Bulk 2 Inch J Hook Supply
ATTMachine supplies 2 Inch J Hooks for companies manufacturing or distributing:
-
Ratchet straps
-
Tie-down straps
-
Cargo lashing systems
-
Load-securing equipment
-
Trailer tie-down products
-
Automotive transport equipment
-
Cargo-control hardware
For OEM and bulk projects, buyers can provide their required specifications, drawings or application details for product evaluation and quotation.
Available project requirements may include:
-
Required quantity
-
Webbing width
-
Load rating
-
Hook configuration
-
Surface finish
-
Packaging
-
Private-label requirements
-
Custom hardware requirements
For custom configurations, confirm technical requirements with ATTMachine before production.

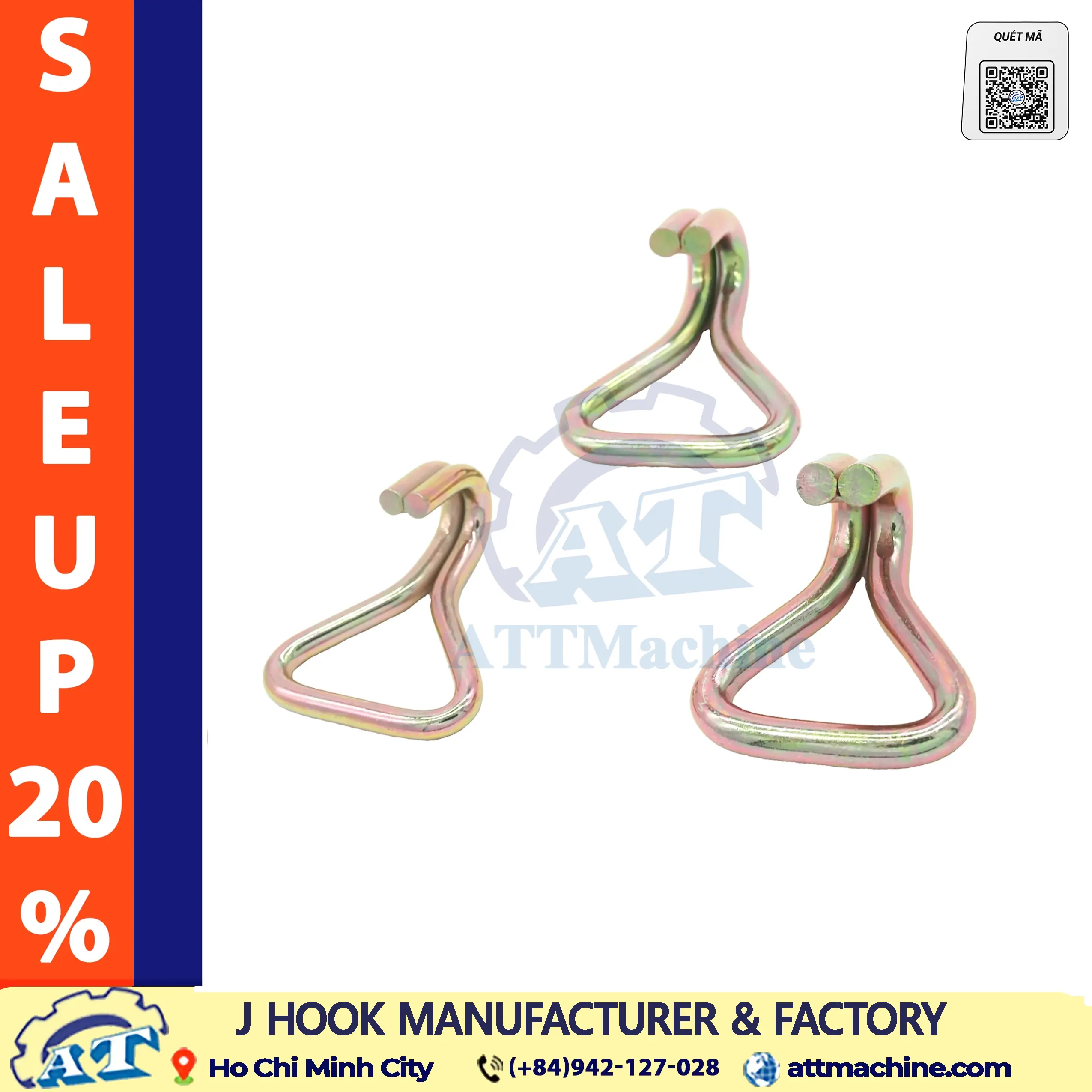

2 inch J hook supplier - ATTMachine Manufacturer
How to Select the Right 2 Inch J Hook
Before ordering a 2 Inch J Hook, check these five points:
1. Webbing width
Confirm that the hook is intended for 50mm / 2-inch webbing.
2. Required capacity
Compare the hook's WLL and breaking strength with the requirements of the complete tie-down system.
3. Anchor-point compatibility
Make sure the hook geometry fits the trailer, truck, D-ring, frame or other anchor point without improper loading.
4. Hook configuration
Confirm whether the application requires a standard J Hook, double J, swivel configuration or another end fitting.
5. Complete assembly rating
The hook should not be selected independently from the webbing, stitching, ratchet and anchor point.
2 Inch J Hook vs. Other Tie-Down Hooks
The correct end fitting depends on the anchor point and the design of the tie-down assembly.
J Hook: suitable for compatible rings, frames and anchor points where its curved profile can properly engage.
Flat Hook: commonly selected where a flat contact surface is preferred for compatible rails or anchor points.
S Hook: provides an open hook configuration for compatible attachment points.
Double J Hook: uses a different wire-hook configuration and may provide a different engagement geometry and load rating.
These products should not be considered interchangeable simply because they are designed for the same 2-inch webbing. The hook geometry, rated capacity and anchor compatibility must be checked for each application.
Frequently Asked Questions
What is a 2 Inch J Hook?
A 2 Inch J Hook is a cargo tie-down end fitting designed for 2-inch / 50mm webbing. It is commonly incorporated into ratchet straps and other load-securing assemblies.
What size webbing fits this J Hook?
This model is designed for 2-inch / 50mm webbing.
What is the breaking strength of the ATTMachine 2 Inch J Hook?
The specified breaking strength is 10,000 lbs.
What is the WLL of this 2 Inch J Hook?
The specified working load limit is 3,333 lbs.
Can it be used with 2-inch ratchet straps?
Yes. It is designed for compatible 50mm / 2-inch ratchet and tie-down strap assemblies.
Is 10,000 lbs the capacity of the complete ratchet strap?
No. The hook's breaking strength does not establish the capacity of the complete strap assembly. Webbing, stitching, ratchet hardware and anchor points must also be appropriately rated.
Can ATTMachine supply 2 Inch J Hooks in bulk?
Yes. ATTMachine supplies cargo-control hardware for OEM, wholesale and bulk requirements.
Can ATTMachine manufacture custom J Hooks?
Custom requirements should be reviewed with ATTMachine based on the required geometry, material, dimensions, load rating and application.
Request a Quote for 2 Inch J Hooks
Looking for a 2 Inch J Hook manufacturer or supplier for ratchet straps, cargo tie-down systems or OEM production?
Contact ATTMachine Mechanical Co., Ltd. for product specifications, samples and bulk quotations.
