ATTMachine 2 Inch J Hook is a heavy-duty cargo tie-down hook for 50 mm (2 inch) webbing. The product is specified with 5000 daN breaking strength (BS) and 2500 daN lashing capacity (LC) for cargo securing, ratchet straps and vehicle tie-down systems.
Designed for B2B applications, this 50 mm J Hook is available for OEM, wholesale and bulk orders from ATTMachine.

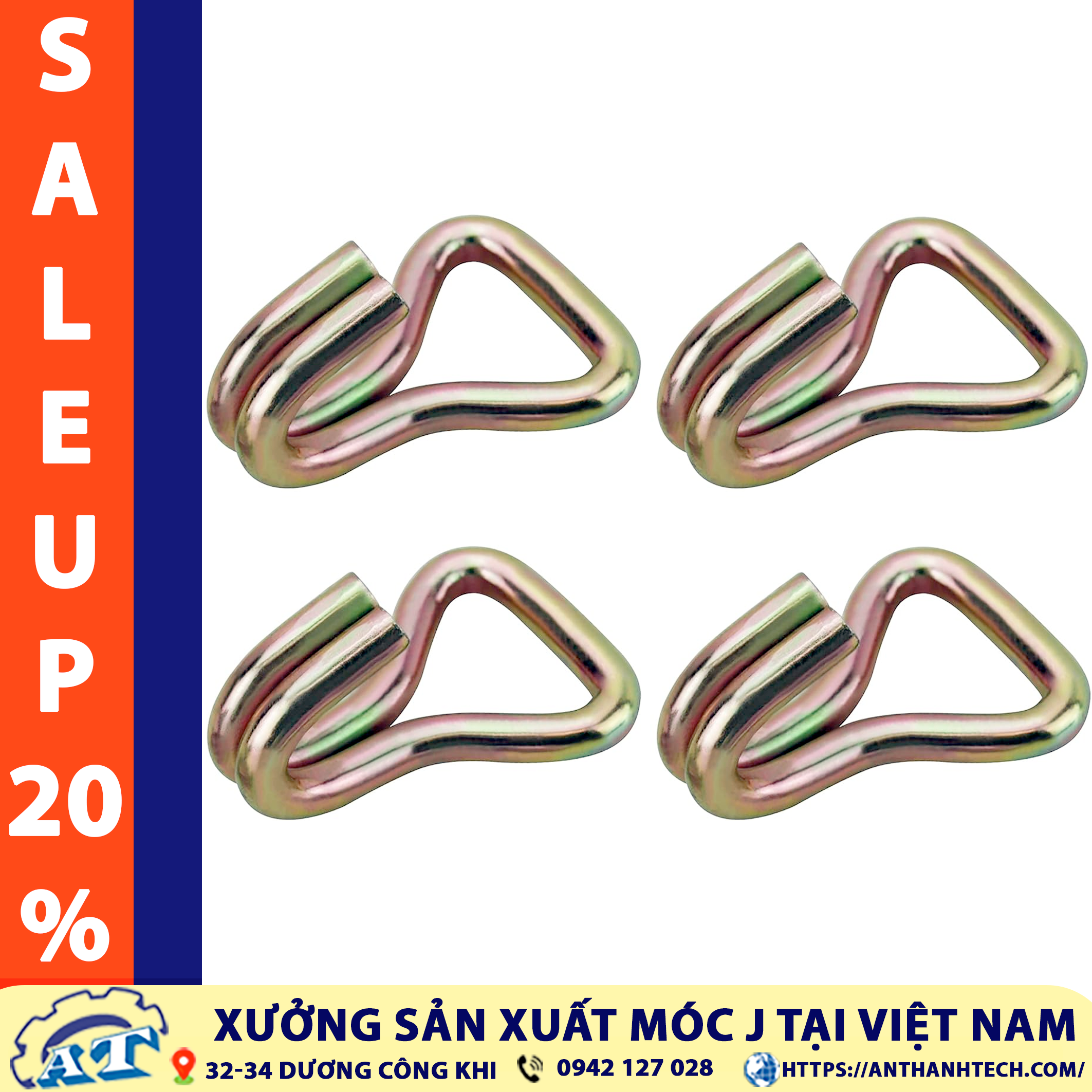

2 inch cargo hooks supplier - ATTMachine Manufacturer
2 Inch J Hook Specifications
| Product Attribute | Specification |
|---|---|
| Product Name | 2 Inch J Hook |
| Product Type | Cargo Tie-Down J Hook |
| Size | 2 inch / 50 mm |
| Webbing Width | 50 mm |
| Breaking Strength (BS) | 5000 daN |
| Lashing Capacity (LC) | 2500 daN |
| Material | Steel |
| Application | Cargo tie-down & load securing |
| Supply | OEM / Bulk / Wholesale |
Product Identification
- Product: 2 Inch J Hook
- Size: 50 mm / 2 inch
- BS: 5000 daN
- LC: 2500 daN
Primary Use: Cargo tie-down and load securing
These specifications identify this model as a 50 mm heavy-duty J Hook for cargo-control assemblies.

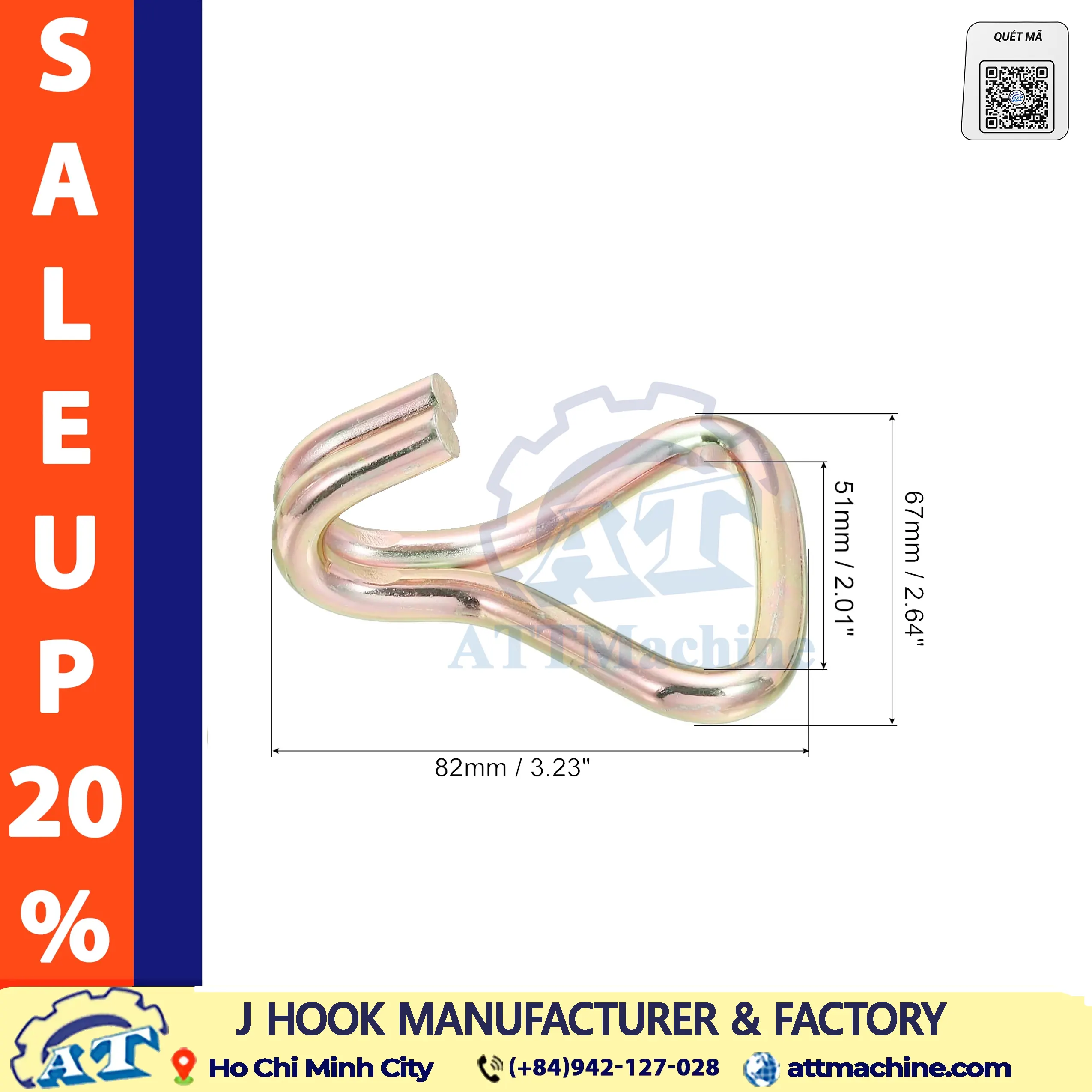

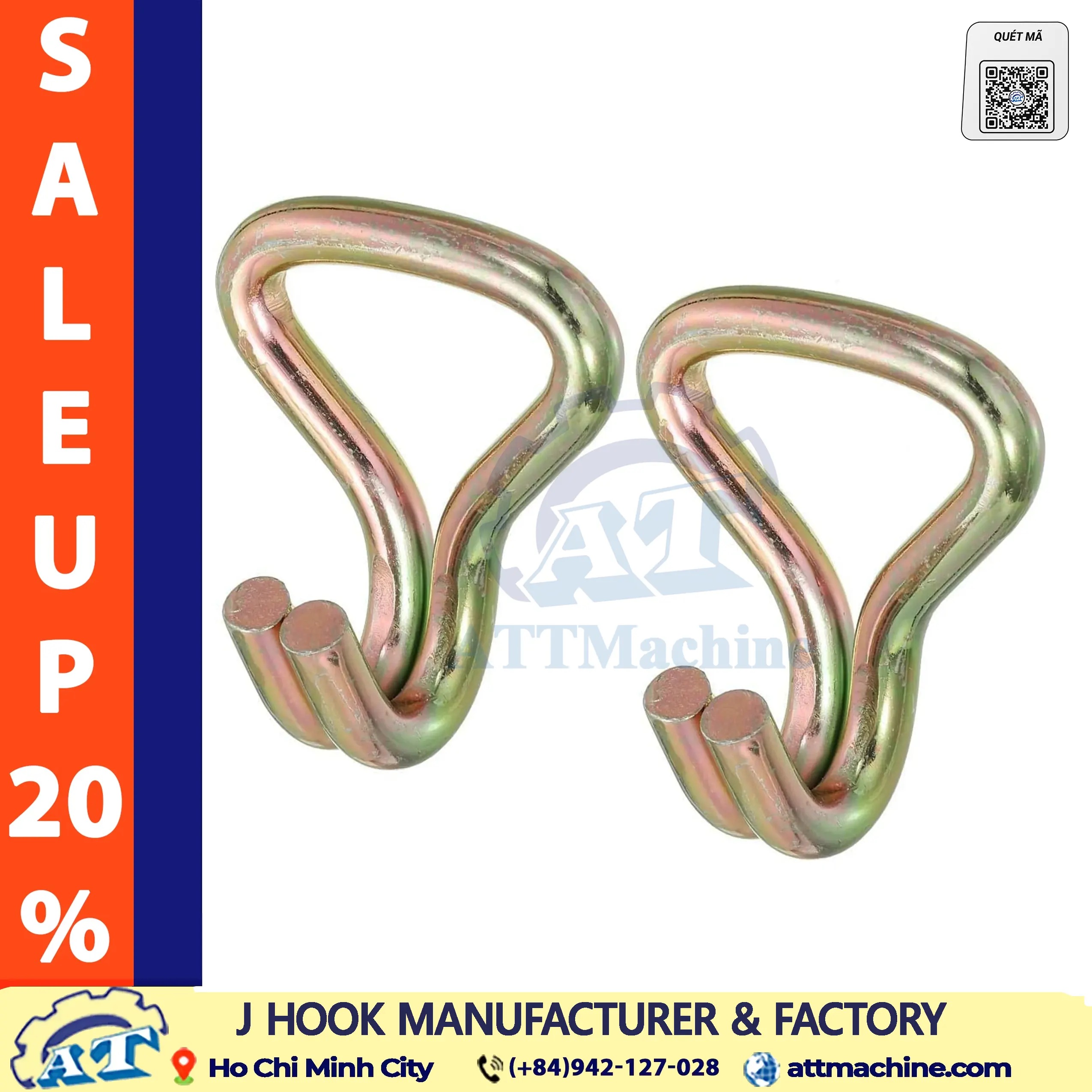

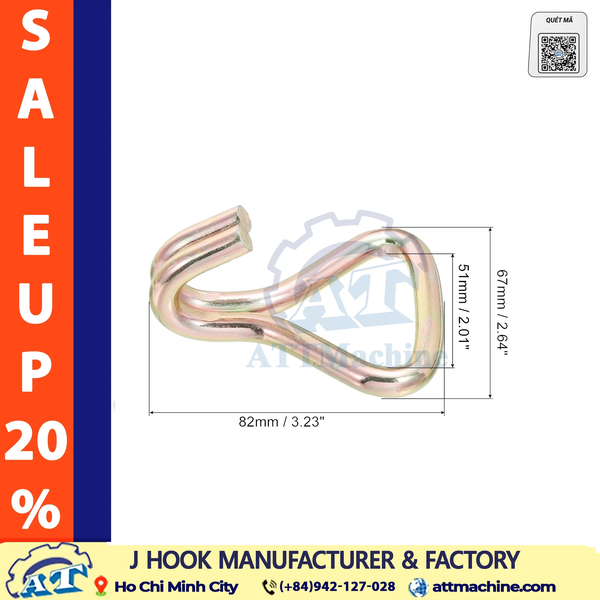

2 Inch J Hook for 50 mm ratchet straps Vietnam manufacturer
5000 daN Breaking Strength & 2500 daN Lashing Capacity
The two strength ratings describe different aspects of the product and should not be treated as the same value.
Breaking Strength (BS): 5000 daN
The specified force associated with failure of the hook under a breaking-strength test.
Lashing Capacity (LC): 2500 daN
The specified capacity used for the lashing application.
Therefore:
5000 daN BS ≠ 5000 daN LC
For reference, 5000 daN is approximately 5,000 kgf, while 2500 daN is approximately 2,500 kgf as force equivalents.
These values should not be interpreted as a lifting capacity or Working Load Limit (WLL). The permissible capacity of a complete tie-down system depends on the hook, webbing, ratchet, anchor points, assembly configuration and applicable requirements.
Compatibility with 50 mm Webbing
The 2 Inch J Hook is designed for 50 mm / 2 inch webbing, making it suitable for integration with standard heavy-duty ratchet strap and cargo tie-down assemblies using this webbing width.
Typical compatible systems include:
-
50 mm ratchet straps
-
50 mm tie-down straps
-
Cargo lashing straps
-
Vehicle tie-down assemblies
-
Trailer tie-down systems
-
Industrial load-restraint assemblies
The hook should be used with a compatible anchor point and correctly engaged before tensioning the tie-down system.

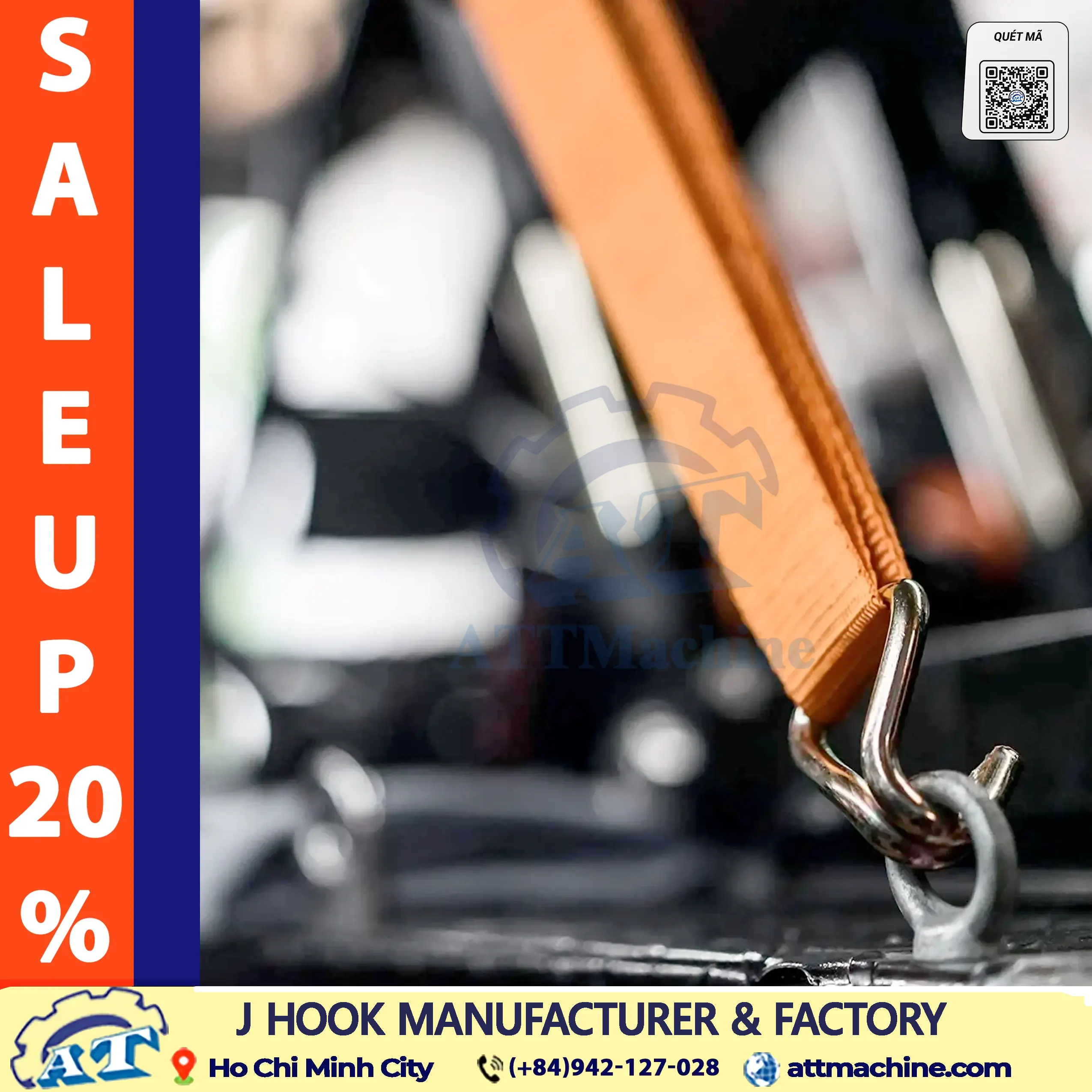

J hook 2500 daN LC - ATTMachine Manufacturer Vietnam
2 Inch J Hook Applications
The 50 mm J Hook is suitable for applications where a strong hook connection is required between the tie-down strap and an appropriate anchor point.

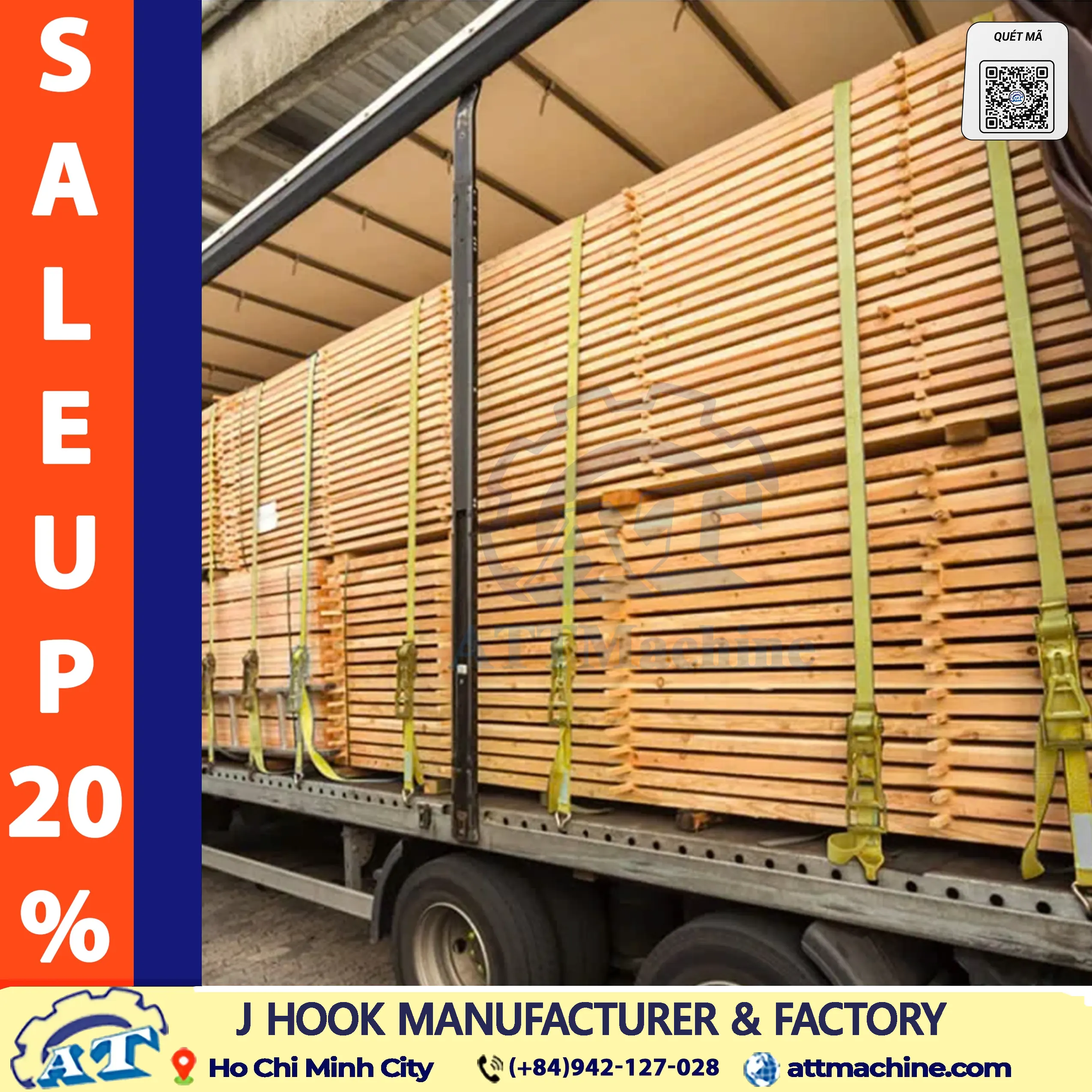

Vehicle Transport
Used in tie-down assemblies for securing cars, trucks, machinery and other vehicles during transportation.
Trailers & Flatbed Trucks
Suitable for cargo-control systems installed on trailers, flatbeds and transport vehicles.
Cargo & Load Securing
Used with ratchet straps to secure equipment, machinery and other loads during transportation.
Industrial Equipment
Can be incorporated into custom tie-down and load-restraint systems for industrial applications.
Ratchet Strap Manufacturing
Suitable as an end fitting for manufacturers producing 50 mm / 2 inch ratchet straps and cargo tie-down assemblies.
ATTMachine J Hook Manufacturer
ATTMachine Mechanical Co., Ltd. manufactures and supplies metal hardware for cargo-control and industrial applications.
The company supplies J Hooks and other tie-down hardware for manufacturers, distributors and B2B buyers.
For this 2 Inch J Hook, ATTMachine focuses on a defined product specification:
50 mm webbing → 5000 daN BS → 2500 daN LC → cargo tie-down application
This specification-based approach allows buyers to evaluate the hook against their complete lashing assembly and application requirements.
OEM & Bulk Supply
ATTMachine supplies the 2 Inch J Hook 5000 daN for OEM manufacturers, wholesalers, distributors and cargo-control companies.
OEM projects can be reviewed according to:
-
Webbing width
-
Hook dimensions
-
Breaking strength
-
Lashing capacity
-
Material requirements
-
Surface finish
-
Quantity
-
Packaging
-
Private-label requirements
For a quotation, provide the required specification and intended application so the product configuration can be reviewed before production.
Why Source 2 Inch J Hooks from ATTMachine?
For B2B buyers, product consistency and specification matching are important when selecting cargo-control hardware.
ATTMachine provides:
-
50 mm / 2 inch J Hook configuration
-
5000 daN breaking strength
-
2500 daN lashing capacity
-
Steel cargo-control hardware
-
OEM and bulk production
-
Custom specification review
-
Manufacturer-direct communication
-
Supply for international B2B customers
FAQ
What is a 2 Inch J Hook?
A 2 Inch J Hook is a cargo tie-down hook designed for 50 mm / 2 inch webbing, commonly used with ratchet straps and load-securing systems.
What is the breaking strength of this J Hook?
The specified breaking strength is 5000 daN.
What is the lashing capacity of this J Hook?
The specified lashing capacity is 2500 daN.
Is 5000 daN the same as 2500 daN LC?
No. Breaking Strength (BS) and Lashing Capacity (LC) are different ratings. This model is specified at 5000 daN BS and 2500 daN LC.
What size webbing fits this J Hook?
This model is designed for 50 mm / 2 inch webbing.
Can this J Hook be used with ratchet straps?
Yes. It is designed for integration with 50 mm ratchet straps and cargo tie-down assemblies, provided the hook and anchor point are compatible.
Is this J Hook suitable for lifting?
No. This is a cargo tie-down component, not a lifting hook. The 5000 daN breaking-strength value should not be interpreted as a lifting WLL.
What are the main applications?
Typical applications include vehicle transport, trailers, flatbed trucks, cargo securing, machinery transportation and ratchet strap manufacturing.
Does ATTMachine offer OEM J Hook manufacturing?
Yes. ATTMachine supplies OEM, wholesale and bulk 2 Inch J Hooks and can review custom specifications, finishes, packaging and production quantities.
Request a 2 Inch J Hook Quote
Need 2 Inch J Hooks for 50 mm ratchet straps or cargo tie-down assemblies?
Contact ATTMachine Mechanical Co., Ltd. for specifications, OEM requirements and bulk pricing.
Phone / Zalo: +84 942 127 028
Email: cokhi.anthanhtech@gmail.com
Manufacturer: ATTMachine Mechanical Co., Ltd. — Vietnam
