Introduction & Definition
What are 2 Inch Ratchet Straps? 2 inch ratchet straps (also known as ratchet tie down straps, ratchet strap, cargo straps, heavy duty straps, ratchets and straps, or cargo strap) are professional-grade tie-down systems trusted for extreme loads. Featuring 50mm high-tensile polyester webbing and a reinforced ratchet buckle, they deliver unmatched tension and reliability. Our top-tier models provide a 5 ton capacity (breaking strength ~11,000 lbs / 5000 kg), making them the ultimate choice for heavy-duty trucking, construction, and industrial transport.
Core Components:
- Polyester Webbing — Extra-thick, UV-resistant, low-stretch for maximum durability under high stress.
- Mechanical Ratchet Buckle — Heavy forged steel with extended leverage handle for effortless, powerful tightening.
The Advantage: With 5 ton capacity, these 2 inch ratchet straps offer superior strength in a compact size—perfect for securing heavy equipment, vehicles, pallets, and steel without compromise, outperforming standard models in demanding conditions.

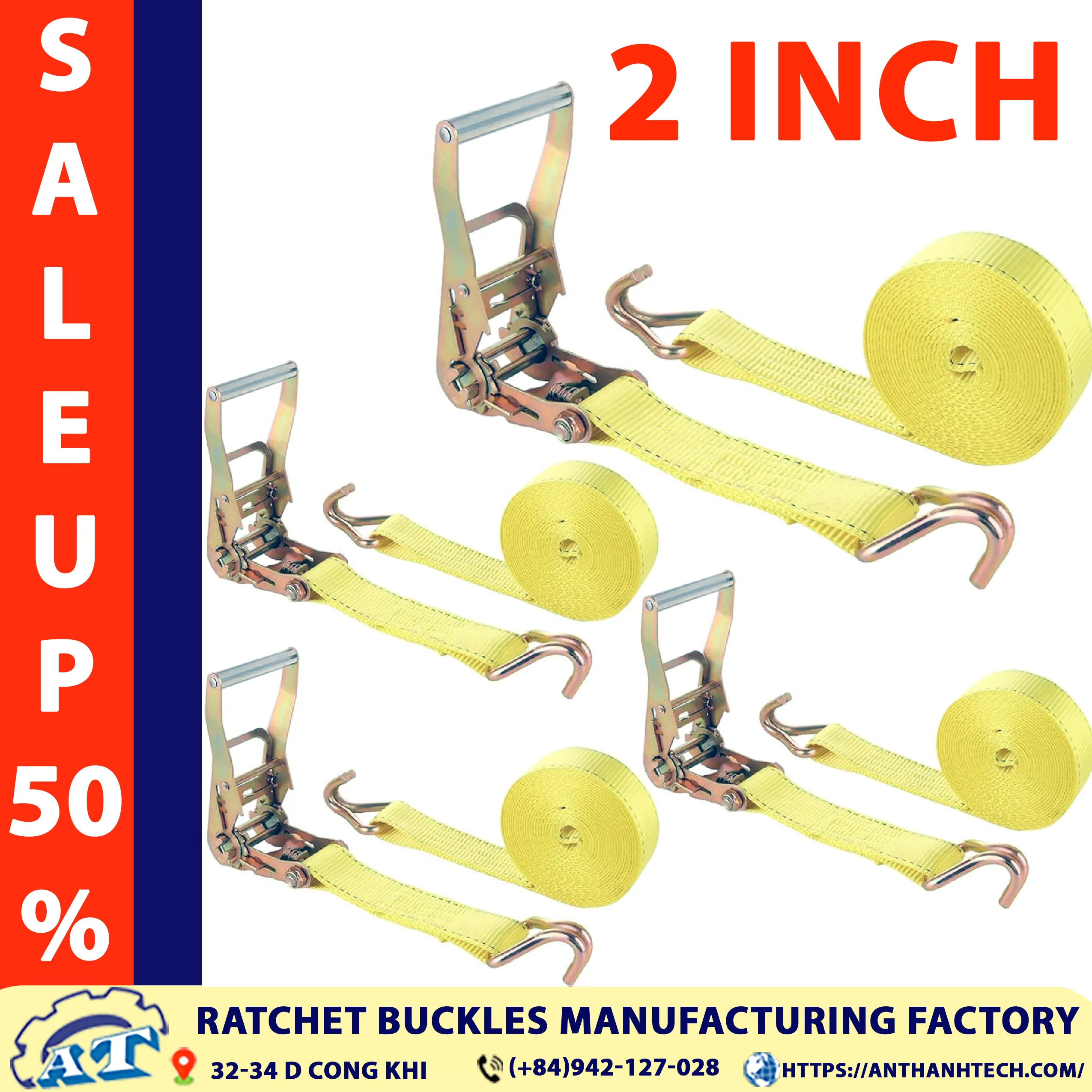

2 Inch Ratchet Strap with Double J-Hooks - 5 Ton Model
Technical Size Comparison Table
Quick comparison of ratchet strap sizes with load capacities:
| Strap Width | Typical Breaking Strength | Working Load Limit (WLL) | Best Applications |
|---|---|---|---|
| 1 Inch | 1,500–3,000 lbs | 500–1,000 lbs | Light-duty: Motorcycles, small cargo |
| 1.5 Inch | 3,000–6,000 lbs | 1,000–2,000 lbs | Medium-duty: ATVs, furniture |
| 2 Inch | 5 Ton (11,000 lbs) | ~3667 lbs | Extreme heavy-duty: Machinery, vehicles, steel |
| 3 Inch | 7–10 Tons | 5,000–6,667 lbs | Professional heavy machinery |
| 4 Inch | 10+ Tons | 6,667+ lbs | Oversized industrial loads |
The 2 inch ratchet strap with 5 ton capacity is the premium choice for professionals needing maximum strength in a versatile size.
Ratchet Strap Sizes Comparison
Expert Selection Guide: The 1/3 Rule
WLL vs. Breaking Strength Breaking strength (~5 ton / 11,000 lbs) is the maximum failure point; WLL (~3667 lbs) is the safe continuous load—typically 1/3 of breaking strength for safety margin.
The 1/3 Rule Divide total cargo weight by WLL per strap to calculate minimum quantity. Example: 15,000 lb load requires at least 5 2 inch ratchet straps (add extras for stability and compliance).
End Hardware Options
- J-Hooks: Heavy-duty enclosed grip for frames/axles.
- Flat Hooks: Wide reinforced contact for E-track/rails.
- Chain Extensions: For ultimate anchoring.
Various Hooks for 2 Inch Ratchet Straps

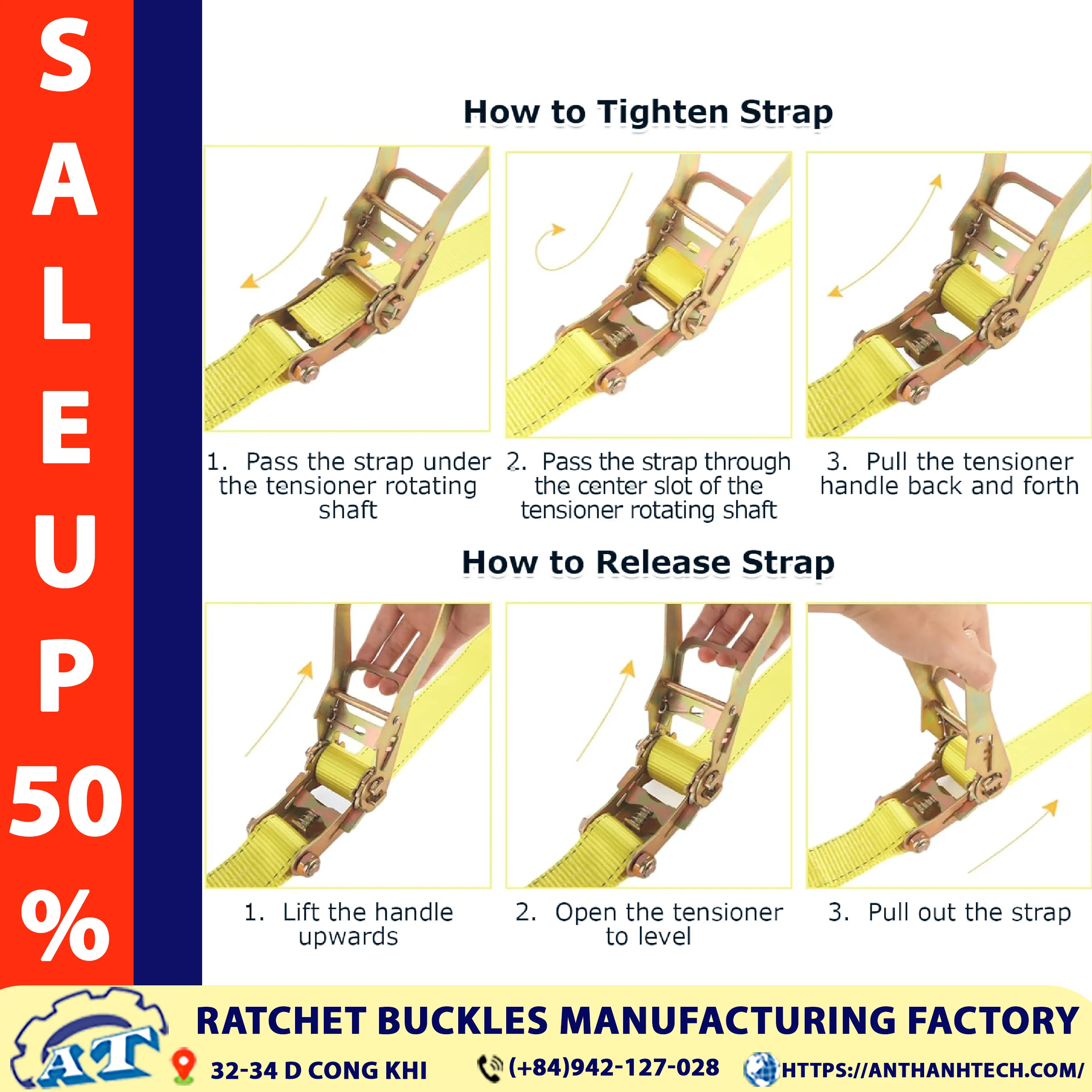

Step-by-Step Safety & Operational Guide
- Inspection — Check webbing for cuts/frays and hardware for rust/deformation.
- Threading — Open ratchet fully; feed webbing through mandrel.
- Tensioning — Pump handle steadily until firm.
- Locking — Close handle; perform tug test.
- Releasing — Press lever, open flat, pull slowly.
Industrial & Commercial Applications
- Trucking/Logistics — Heavy pallets and containers on flatbeds.
- Construction — Steel beams, lumber, large equipment.
- Automotive — Multi-vehicle transport and recovery.
- Industrial Hauling — Machinery, generators.

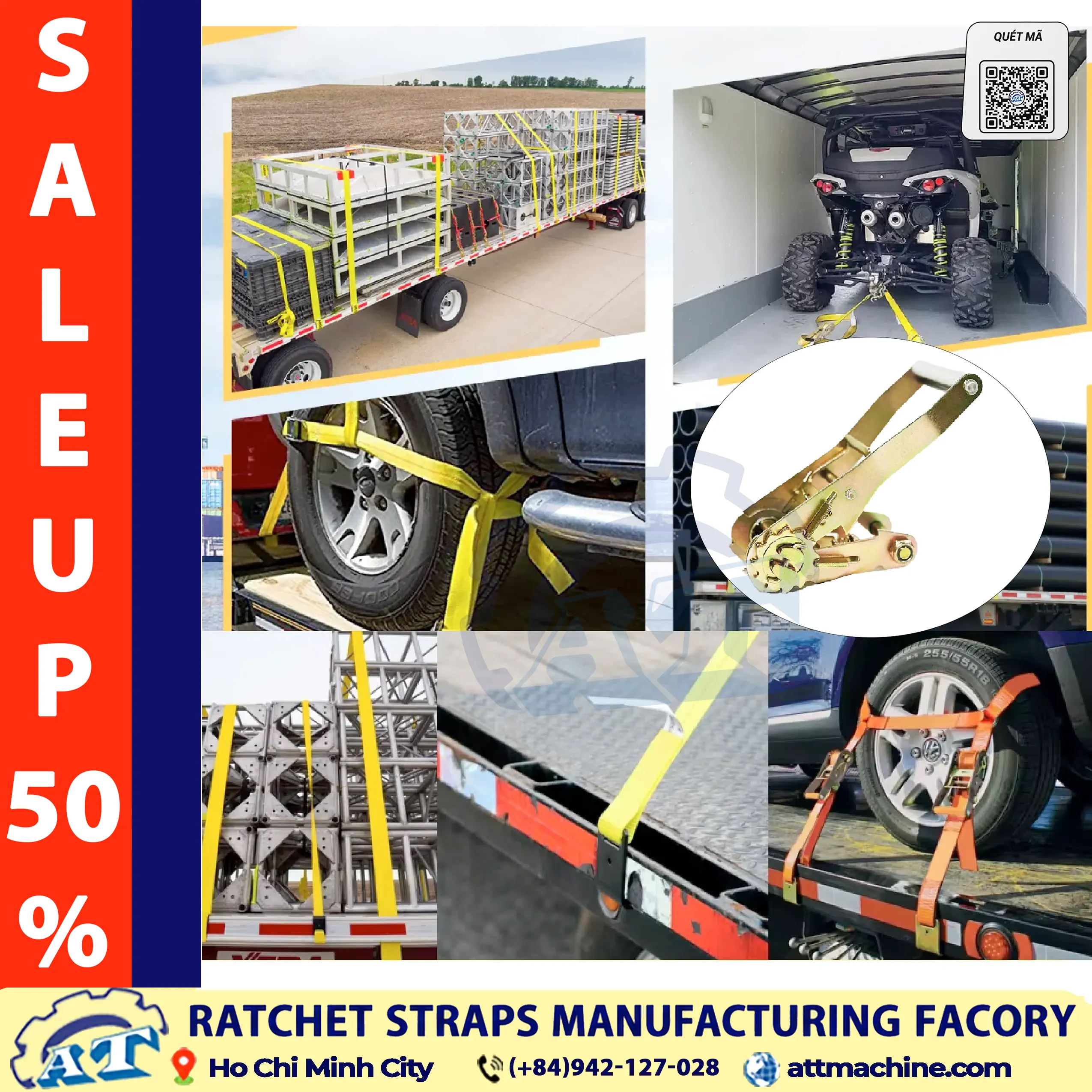

2 Inch Ratchet Straps Securing Load on Flatbed
Heavy Equipment Secured with 2 Inch Straps
An Thanh Technology Co., Ltd. – Your Trusted Manufacturer
An Thanh Technology Co., Ltd. is a leading manufacturer of 2 inch ratchet straps with 5 ton capacity and full cargo securing range in Asia.
- Compliance — Meets EN 12195-2 for proven safety and reliability.
- B2B Benefits — OEM/ODM customization, factory-direct pricing, fast global shipping (3–7 days).
- Location — 32-34 D. Cong Khi Street, Hamlet 1, Hoc Mon District, Ho Chi Minh City, Vietnam.
Frequently Asked Questions (FAQ)
When should I replace 2 inch ratchet straps?
Replace immediately for cuts, frays, UV damage, or rust—typically every 2–4 years with heavy use.
Suitable for extreme weather?
Yes—reinforced polyester webbing resists moisture, heat, and UV degradation.
J-hook vs. Flat hook?
J-hook for enclosed secure grip; flat hook for wide, stable rail contact.
Contact Information & Call to Action
- Phone/Zalo: (+84) 942.127.028
- Email: cokhi.anthanhtech@gmail.com
- Website: https://anthanhtech.com
- Download Catalog – Full specifications and product range.
Contact us today for bulk quotes on 2 inch ratchet straps with 5 ton capacity!
