Introduction & Definition

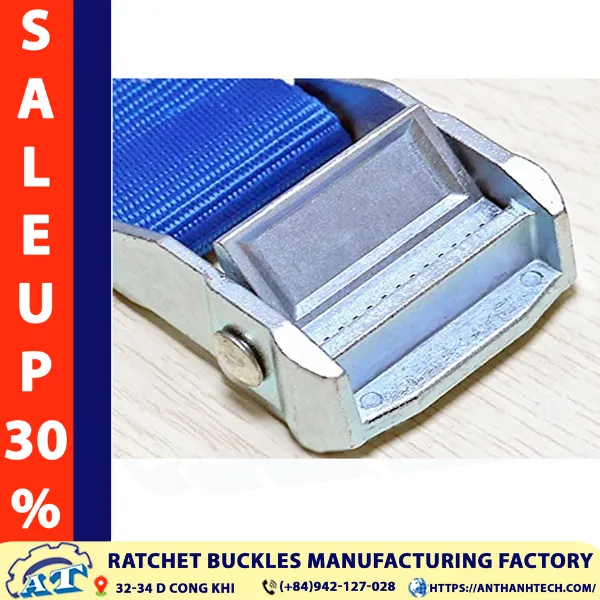

What is a 2 Inch Cam Buckle? The 2 inch cam buckle is a robust, quick-release fastening device designed for cam straps—ideal for heavier light-duty and medium-duty cargo securing where fast operation and reliable hold are required. It features a heavy-duty spring-loaded cam that grips 50mm polyester webbing, offering instant tensioning and release without the mechanical complexity of ratchet systems.
Core Components:
- Heavy Spring-Loaded Cam — Reinforced toothed cam for secure grip on thicker webbing.
- Sturdy Frame — Zinc-plated steel construction for strength and longevity.
The Advantage: 2 inch cam buckles and cam straps provide more holding power than smaller sizes while maintaining the signature quick-release speed—perfect for users who need stronger securing than 1-inch models but prefer the simplicity and fast adjustment of cam systems over ratchets.
2 Inch Cam Strap Coiled with S-Hook

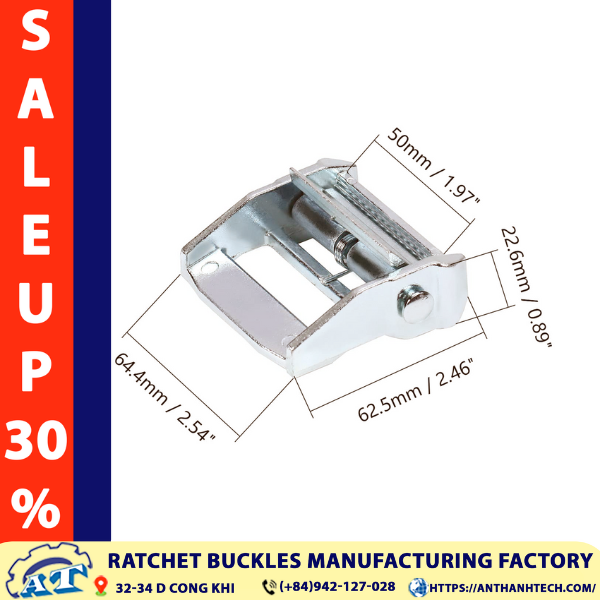

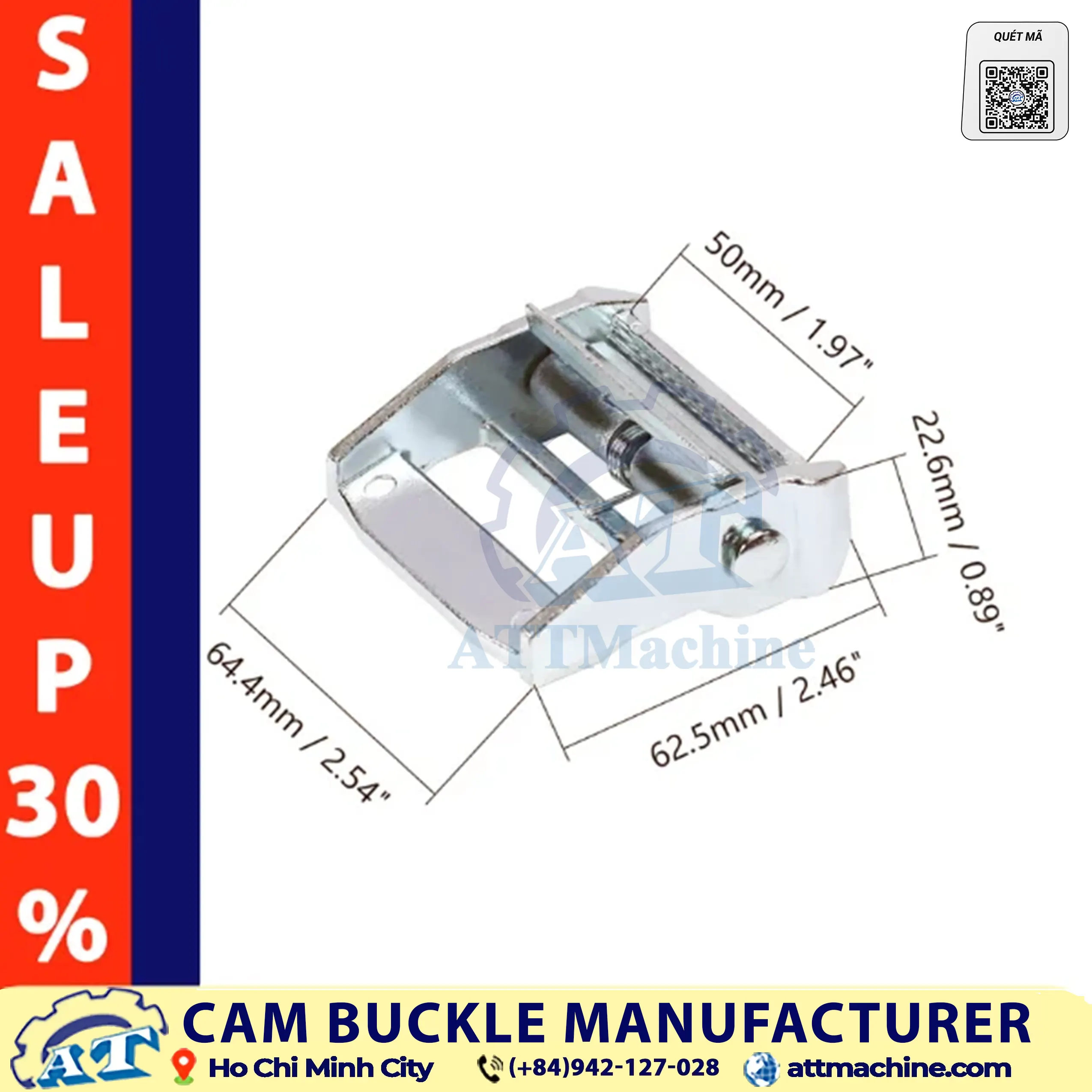

Technical Specifications & Comparison
| Buckle Size | Compatible Webbing | Typical Breaking Strength | Working Load Limit (WLL) | Best Applications |
|---|---|---|---|---|
| 1 Inch Cam Buckle | 25mm | 800–1,500 lbs | 300–500 lbs | Light-duty: Luggage, small bundles |
| 1.5 Inch Cam Buckle | 38mm | 1,500–2,500 lbs | 500–800 lbs | Medium-duty: Furniture, kayaks |
| 2 Inch Cam Buckle | 50mm | 2,500–4,000 lbs | 800–1,300 lbs | Heavier light-duty: Appliances, bikes, equipment |
The 2 inch cam buckle delivers the highest capacity in the cam buckle range—excellent for demanding light-medium loads.

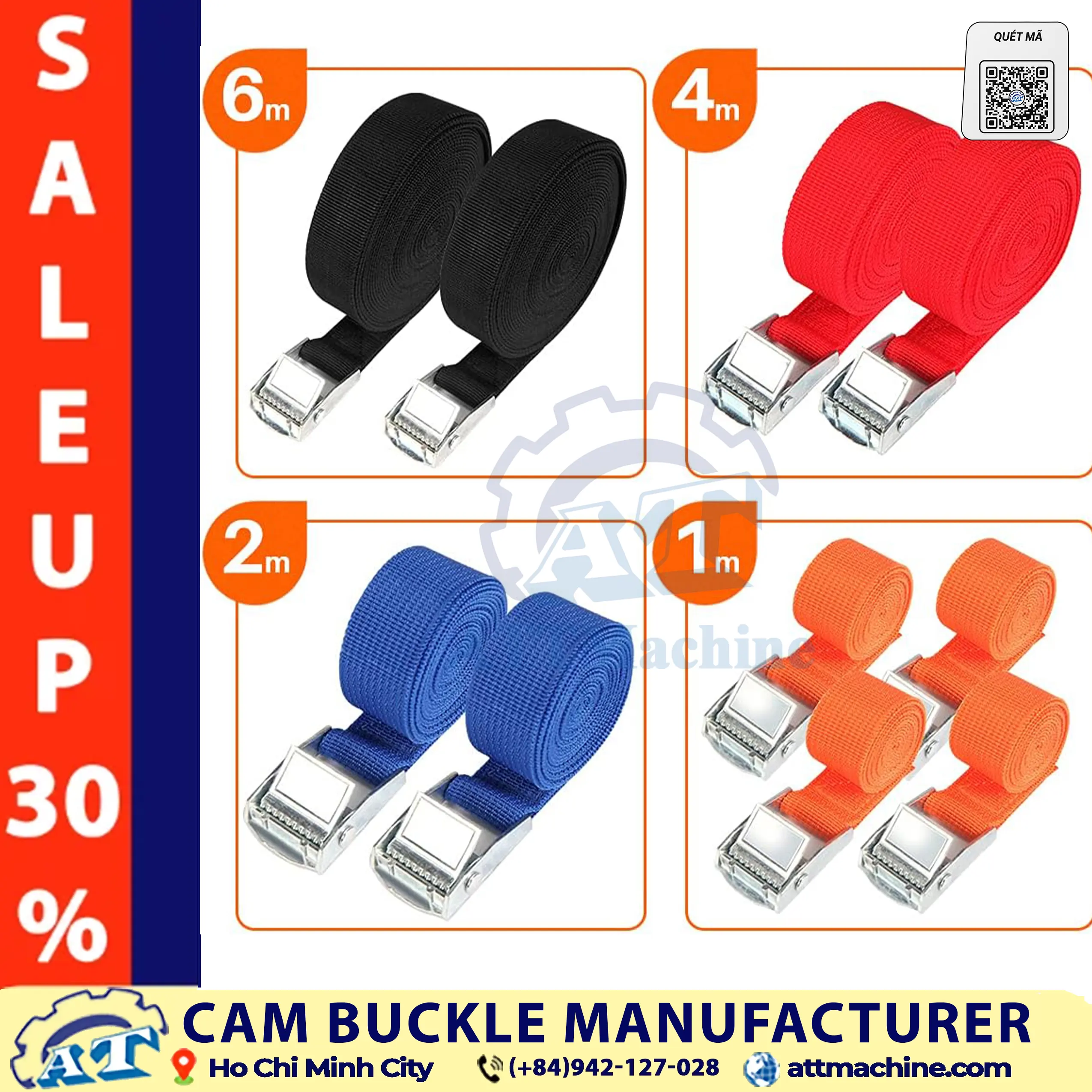

20 ft Cam Buckle Strap Example
Expert Selection Guide
When to Choose 2 Inch Cam Buckles
- Need quick release with greater strength.
- Loads are heavier light-duty (800–1,300 lbs WLL).
- Prefer fast operation over maximum ratchet tension.
Popular Options We offer 20 ft cam buckle straps for long reach—ideal for securing larger items like appliances, lumber, or roof cargo without multiple short straps.
End Hardware
- Heavy S-Hooks: Strong snap-on.
- Vinyl-Coated Hooks: Protect surfaces from scratches.
Step-by-Step Operation
- Thread — Feed webbing over the cam from front.
- Tension — Pull strap tight; press cam down to lock.
- Adjust — Lift cam slightly to reposition.
- Release — Press cam fully for instant free webbing.

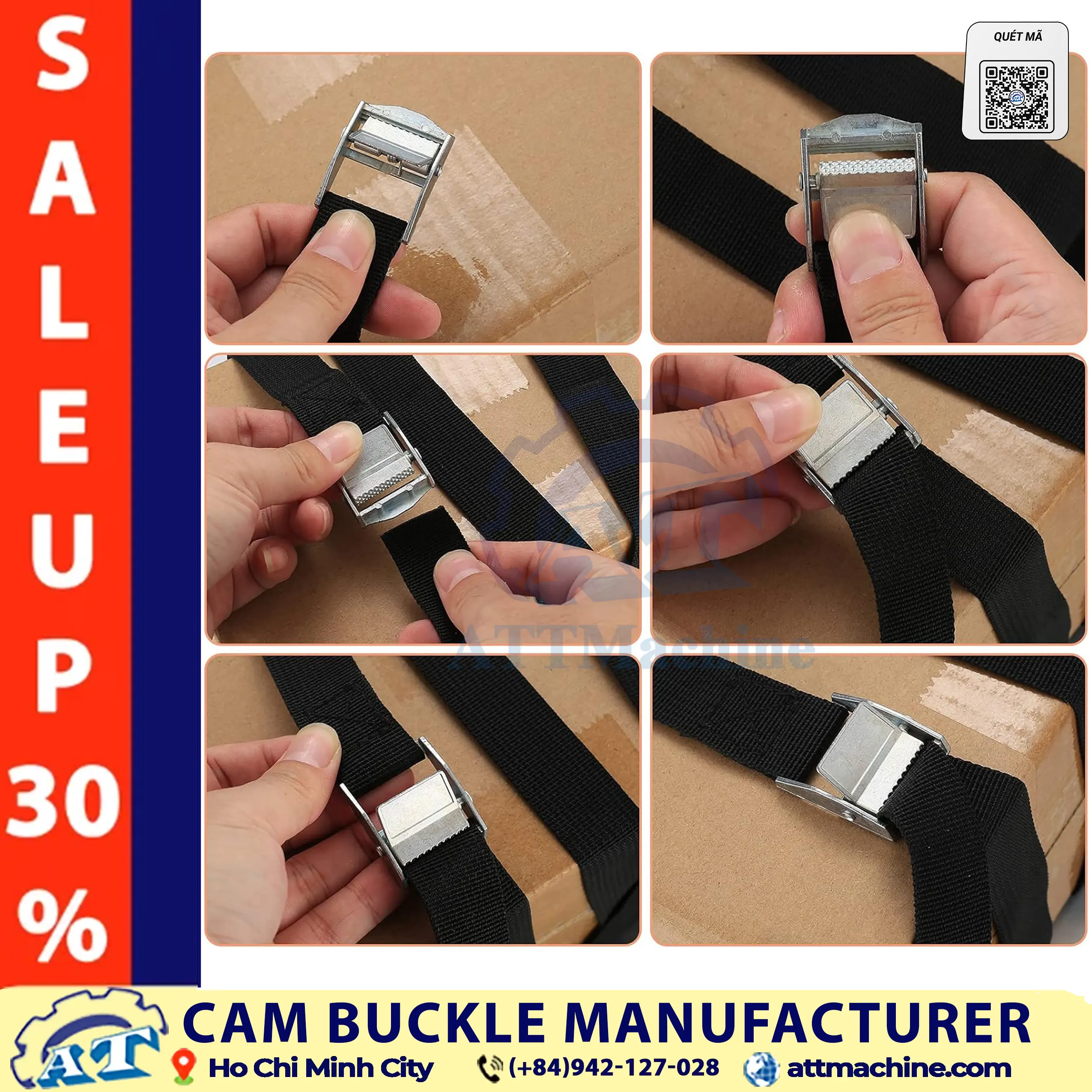

How to Use 2 Inch Cam Buckle Step by Step

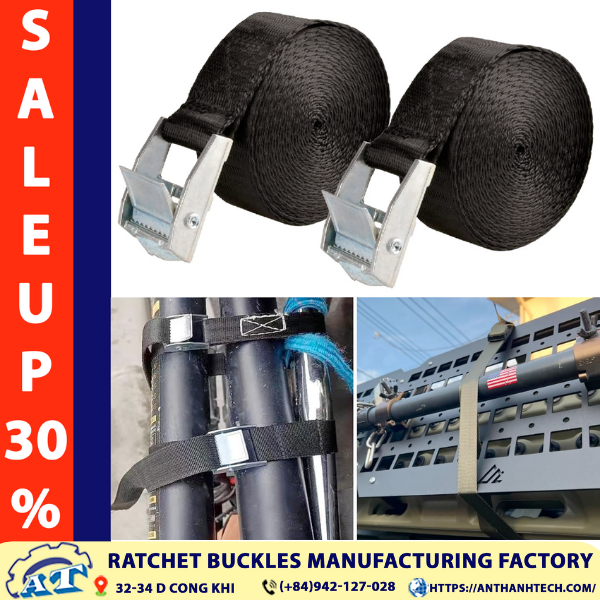

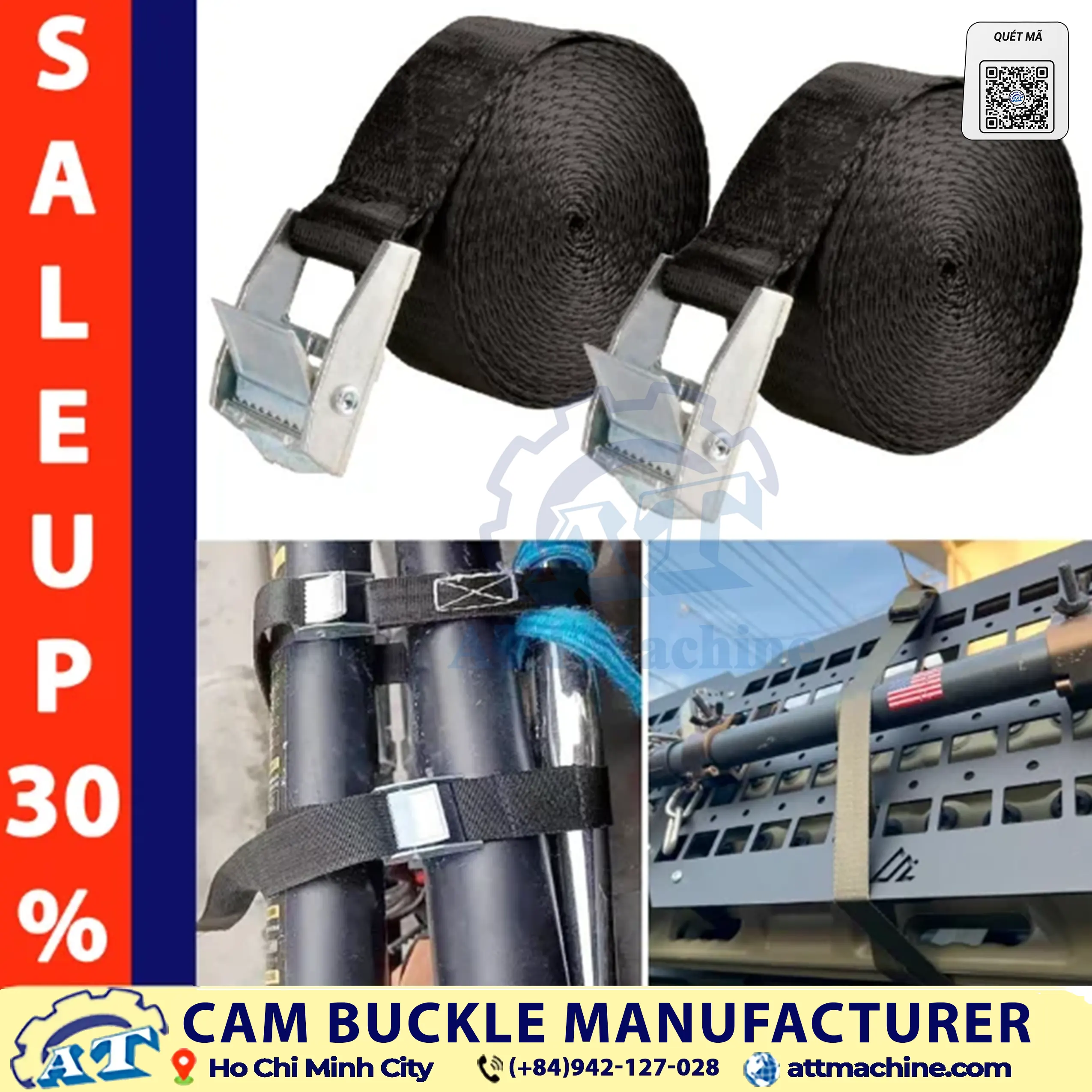

Applications
- Recreational — Bikes, larger kayaks, roof cargo.
- Moving & Light Commercial — Appliances, furniture, delivery loads.
- Construction/Landscaping — Tools, materials, equipment bundles.
2 Inch Cam Strap Securing Appliance on Trailer
20 ft Cam Strap Bundling Lumber or Pipes
An Thanh Technology Co., Ltd. – Your Cam Buckle Manufacturer
An Thanh Technology Co., Ltd. produces high-quality 2 inch cam buckles and complete cam straps (including 20 ft cam buckle straps) in Vietnam.
- Quality — Reinforced construction for reliable daily performance.
- Customization — Lengths, colors, private labeling available.
- Fast Shipping — 3–7 days worldwide.
Frequently Asked Questions (FAQ)
Cam buckle vs ratchet buckle? Cam for quick, heavier light-duty loads; ratchet for extreme heavy-duty tension.
Are 2 inch cam straps safe for roof racks? Yes—strong enough for medium cargo with fast adjustment and release.
Maximum length? Standard up to 20 ft cam buckle straps; longer on custom order.
Contact & Call to Action
- Phone/Zalo: (+84) 942.127.028
- Email: cokhi.anthanhtech@gmail.com
- Website: https://anthanhtech.com
- Download Catalog – Full cam buckle & strap range
Contact us today for quotes on 2 inch cam buckles and 20 ft cam straps!
